LHP-30D

LHP-30D

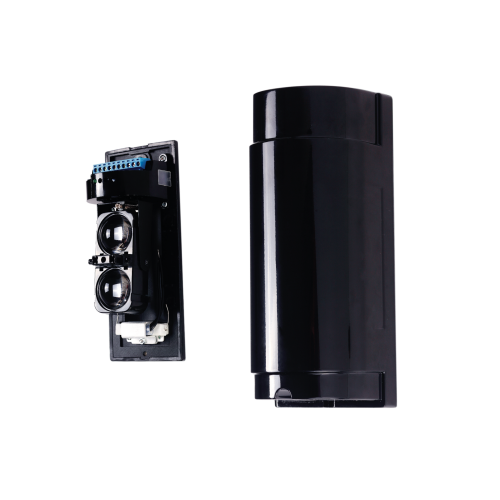

Dual Beam Detector

> Digital circuit design, more stable
> Detecting distance 60m
> Sensitivity level adjustable, level 1~5
> Anti-tamper function
> Installation base optional
> Adjust beams easily
> Alarm type N.C/N.O. optional
> Intelligent adjustment to the environment temperature
> IP 55
0.00 ₼
   0 şərh  |  Şərh yaz

Technical Specification

Distance

60m

Beams

2

Detection System

2 beams cut simultaneously

Relay Output

N.C./N.O. optional

Tamper Switch

N.C.

Ingress Protection

IP55(outdoor)

Axis Rotation Angle

Horizontally 180(±90°), Vertically 20(±10°)

Dimension

195mmx80mmx78.6mm

Working Voltage

DC12-24V

Operation Current

＜55mA

Working Temperature

-25°C~+70°C

Material

ABS plastic
