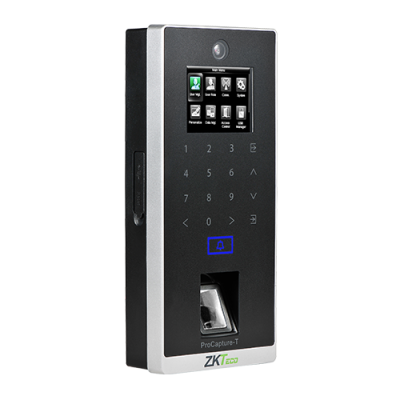

ProCapture-T is an access control terminal applying the most advanced SilkID fingerprint sensor. Its outstanding performance provides a high identification rate towards dry, wet and rough fingers, being capable to detect alive finger for a higher security level.
The fingerprint verification speed has been dramatically increased by its optimized fingerprint algorithm and the brand new ZMM220 hardware platform, equipped with a fast
1.2GHz processor.
The touch keypad delivers a smooth and easy user operation to enroll and delete users, set device and access control parameters, etc.
Its built-in camera allows to capture user’s photos and events snapshots to provide attendance evidence (optional function).
Fingerprint Capacity | 6,000 |
Card Capacity | 10,000 |
Transactions Capacity | 100,000 |
User Photos | 3,000 |
Event Photos | 7,000 |
Communication | TCP/IP, RS485 (For Slave Reader), USB Host, Wiegand Input / Output, Security Relay Box |
Hardware | 1.2GHz Dual Core CPU, Memory 128MB RAM / 256MB Flash, SilkID Fingerprint Sensor, 2,4 Inches TFT-LCD Touch Screen, 125KHz EM Reader / Mifare (Optional), Hi-Fi Voice & Indicator, Tamper Switch Alarm, Touch Keypad, 120° Wide Angle Camera |
Standard Functions | Access Levels / Groups / Holidays , DST / Bell Schedule, Duress Mode, Anti-Passback, Record Query, Custom Wallpaper & Screen Saver |
Special Functions | Multiple Verification Modes, Alive Finger Detection, Event Snapshot, User Photo(Optional) |
Access Control Interface | Lock Relay Output, Alarm Output / Auxiliary Input, Exit Button / Door Sensor, Doorbell Output |
Compatibility | Wiegand Slave Reader, RS485 FP Slave Reader , ZKBioSecurity Software |
Working Temperature | -10 °C ~ 50 °C |
Dimensions | 195.5 × 87 × 35 mm. |
Algorithm | Fingerprint Algorithm ZKFinger v10.0 |
Power | Operating Voltage 12V DC, Current Draw < 500 mA |
