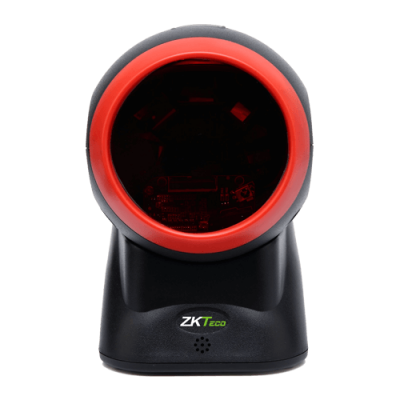

ZKB107 is a high performance 1D barcode scanning platform with, 20-line rastering omni-directional scan pattern for increased productivity to no matter novice and expert users, resulting in shorter checkout lines, better customer satisfaction.
| Mechanical Characteristics | |
| Dimensions | 100mm × 95mm × 150mm |
| Weight | 330 g, without cable |
| Cable | Straight 2.0 m |
| Connector Type | RJ-45 |
| Indicator | LED |
| Interface Supported | RS-232, USB Keyboard, USB virtual COM |
| Electrical Characteristics | |
| Input Voltage | 4.5 – 5.5 VDC |
| Current | 235 mA |
| Scan Performance | |
| scanning speed | 1500 lines/s |
| Scanning patterns | All-orientation space scanning(20 laser lines,5 directions) |
| Print Contrast | 30% minimum reflective diuerence(UPC/EAN 100%) |
| Decoding Capability | 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey. |
| Minimum Resolution | 0.102mm(4mil)@Code 39, PCS=90% |
| Decoding Depth | 0 mm – 300 mm |
| Environmental Characteristics | |
| Temperature | operating: -10° to 50°C (14° to 122°F); storage: -20° to 60°C (-4° to 140°F) |
| Humidity | 5% to 95% (non-condensing) |
| Safety | EMC: EN55022, EN55024 | Electrical Safety: EN60950-1 | Sealing: IP54 |
| EMI:EN50081 | Drop Resistance: Withstands multiple 1.5 m drops to concrete | |
