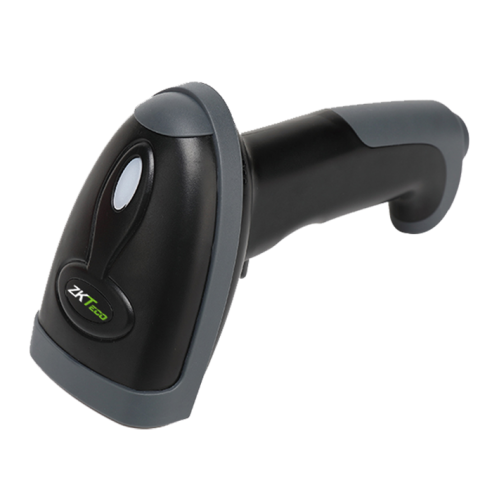

With aggressive scanning capabilities and a wide working range, the ZKB104 & ZKB105 accurately captures data fast, helping employees work quickly and eflciently.
| Model | ZKB104 | ZKB105 |
| Mechanical Characteristics | ||
| Light source | 650nm laser diode LED (635nm) | |
| Scanning patterns | Single line scanning | |
| Scanning speed | 200 times/s | |
| Minimum Resolution | 0.10mm | |
| Decoding Depth | 0-540mm | |
| Scanning Angle | 30°,65°,60°(skew, pitch, roll) | |
| Decoding Capability | EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 93Code 128,EAN128,Codaber,Industoal 2 of 5, Interleave 2 of 5,Matrix 2 of 5, MSI, GS1 | |
| Interface Supported | RS232,USB | |
| Print Contrast | 30% minimum reflective diuerencean Performance | |
| Decoding Error Rate | 1/5 million | |
| Indicator | Beeper, LED | |
| Operating Mode | Hand-held, Auto-detection | |
| Physical Characteristics | ||
| Dimensions | 180mm×69mm×92mm | |
| Packing Dimensions | 185mm×110mm×85mm | |
| Net weight | 180g | 150g |
| Material | ABS+PTR | |
