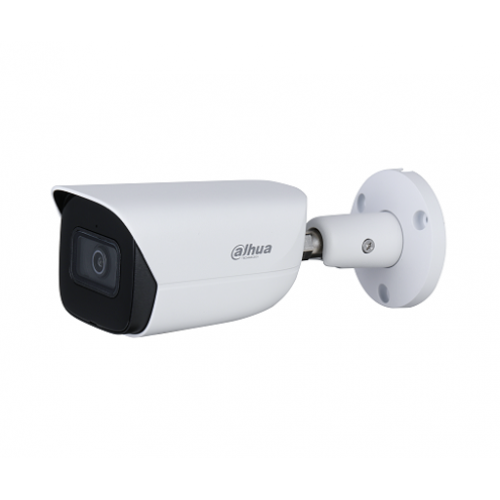

2 MP Network Camera
| The matrix | 1/2. 8 " 2 MP Progressive scan CMOS | ||||
| Max. resolution | 1920 × 1080 | ||||
| ROM | 128 MB | ||||
| RAM | 512 MB | ||||
| Scanning system | Progressive | ||||
| Electronic shutter speed | Auto / Manual 1 / 3 s – 1 / 100,000 s | ||||
| 0.0015 Lux F1. 0 | |||||
| Signal-To-Noise Ratio" | > 56 dB | ||||
| Pan / Tilt / Rotate Range | Pan:0° - 360°; Tilt:0° - 90°; Rotation:0° - 360° | ||||
| Lens Type | Fixed | ||||
| Focal length | 3.6 mm | ||||
| Max. aperture | F1.0 | ||||
| Viewing angle | 84° | ||||
| IR Type | Fixed | ||||
| Closed focal length | 1.7 m (5.6 ft) | ||||
| DOPE Distance | Lens | Detection | Notification | Speech recognition | Identification |
| 3.6 mm | 55.2 m (181.1 ft) | 22.1 m (72.5 ft) | 11.0 m (36.1 ft) | 5.5 m (18.0 ft) | |
| Perimeter protection | Stretching,Intrusion (Recognition of vehicles and people) | ||||
| Smart Search | Work together with Smart NVR to perform accurate intelligent search, event extraction, and integration with video events | ||||
| Video | |||||
| Video compression | H. 265; H. 264; H. 264H; H. 264B; MJPEG (supported only by an additional stream) | ||||
| Smart Codec | Smart H.264+ | ||||
| Video Frame Rate | |||||
| Streaming capabilities | 3 streams | ||||
| Permission | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
| Managing the bitrate | CBR; VBR | ||||
| Video bitrate | H. 264:3 kbps – 8192 kbps H. 265: 3 kbps – 8192 kbps | ||||
| Color / B / W | |||||
| BLC | There are | ||||
| WDR | 120 dB | ||||
| White Balance | |||||
| Gain control | Auto / Manual | ||||
| Noise reduction | 3D DNR | ||||
| Motion Detection | Off / On (4 Zones, Rectangle) | ||||
| Area of Interest (RoI) | There Are (4 Zones) | ||||
| 0 ° / 90 ° / 180 ° / 270 ° (Support 90 ° / 270 ° with 1920 × 1080 resolution and below) | |||||
| Display | There are | ||||
| 4 Zones | |||||
| Audio | |||||
| Built-in microphone | There are | ||||
| Audio compression | G.711a; G.711Mu; G726; AAC | ||||
| Anxiety | |||||
| Disturbing events | |||||
| Network | |||||
| Network | RJ-45 (10 /100 Base-T) | ||||
| SDK and API | There are | ||||
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Многоадресная рассылка; ICMP; IGMP; NFS; PPPoE; 802.1x; SNM | ||||
| Compatibility | ONVIF (Profile S / profile G); CGI; P2P; Milestone; Genetec | ||||
| Self-adaptation of the scene | There are | ||||
| User / Host | |||||
| Storage | FTP; SFTP; Micro SD card (Support max. 256 GB.); Dahua Cloud; NAS | ||||
| Web Browsing | IE: IE8; IE9; IE11 Chrome Firefox | ||||
| Management software | Smart PSS; DSS; DMSS | ||||
| Smartphones | IOS; Android | ||||
| Certificates | |||||
| Certificates | CE-LVD:EN62368-1 FCC:47 CFR FCC, Part 15, Subsection B UL / CUL:UL60950-1 CAN / CSA C22.2 No. 60950-1-07 | ||||
| Audio input | 1 channel (RCA Port ) | ||||
| Audio output | 1 channel (RCA Port ) | ||||
| Alarm input | 1 channel input:5mA 3V-5V DC | ||||
| Alarm output | 1 channel output:300mA 12V DC | ||||
| Protection | |||||
| Degree of protection | IP67 | ||||
| Operating conditions | -40 ° C to + 60 ° C (-40 ° F to +140 ° F) / Less than 95% | ||||
| Storage conditions | -40 ° C to + 60 ° C (-40 ° F to +140 ° F) | ||||
| Electrical properties | |||||
| Power supply | 12V DC / PoE | ||||
| Power consumption | <4.3 W | ||||
| Body | Metal | ||||
| Bracing | M12 | ||||
| Sizes | 192.7 mm × 70.5 mm × 66.4 mm (632.2 "× 231.3" × 217.8") | ||||
| Net Weight | 590 g (1.3 lb) | ||||
| Gross Weight | 780 g (1.7 lb) | ||||
