Camera
The matrix		1/2. 8 ”2 MP Progressive scan CMOS
Effective pixels		1920 x 1080
RAM / ROM		256 Mb / 32 Mb
Scanning system		Progressive
Electronic shutter speed		Auto / Manual, 1/3 ~ 1/100000 s
Mines. lighting		0.006 Lux / F1. 4 (Color, 1/3 s, 30IRE) 0.05 Lux / F1. 4 (Color, 1/30 s, 30IRE) 0 Lux / F1. 4 (IR on))
Signal-to-noise ratio"		More than 50dB
IR distance		Up to 60 m (197ft)
IR Control On / Off		Auto / Manual
IR LEDs		4
Lens
Lens Type		Manually
Focal length		2.7 mm ~ 13.5 mm
Max. aperture		F1.4
Viewing angle		106° ~ 29°
Focus Management		Manually
Closed focal length		0.3 m
DOPE Distance	Lens	Detection	Notification	Speech recognition	Identification
	W	46m (150ft)	18m (59ft)	9m (30ft)	5m (16ft)
	T	153m (502ft)	61m (200ft)	31m (102ft)	15m (49ft)
PTZ
Pan / Tilt Range		Panning:0° ~ 360°; Tilt:0° ~ 90°; Rotation:0° ~ 360°
Intellectual properties
Trigger events		Motion Detection, Video Violation, Scene Change, Network Outage, IP Address Conflict, Illegal Access, Storage Anomaly
IVS		Stretching, Intrusion
Video
Compression		H. 265 / H. 264H / MJPEG (Additional stream)
Smart Codec		H.265+ / H.264+
Streaming capabilities		2 streams
Permission		1080P (1920 × 1080) / 1.3M (1280 × 960) / 720P (1280 × 720) / D1 (704 × 576 / 704 × 480) / VGA (640 × 480) / CIF (352 × 288 / 352 × 240)
Frame Rate		Main Stream: 1080P (1 ~ 25 / 30fps)
		Additional stream: D1(1 ~ 25 / 30fps)
Managing the bitrate		CBR/ VBR
Bit rate		H.265: 12K ~ 6400Kbps H.264: 32K ~ 10240Kbps
Day / Night		Auto (ICR) / Color / B / W
BLC Mode		BLC / HLC / WDR (120dB)
White Balance		Auto / Natural / Street Lamp / Outdoor activities / Manually
Gain control		Auto / Manual
Noise reduction		3D DNR
Motion Detection		Off / On (4 Zones, Rectangle)
Area of interest		Off / On (4 Zones)
Electronic Image Stabilization (EIS)		No
Smart IR		Supports
Digital zoom		16x
Rotate the frame		0° / 90° / 180° / 270°
Display		Off / On
Privacy Mask		Off / On (4 Zones, Rectangle)
Audio
Compression		No
Network
Ethernet		RJ-45 (10 / 100Base-T)
Protocol		HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP; FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP; NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;TLS
Compatibility		ONVIF Profile S&G, API
Streaming method		Unicast / Multicast distribution
Max. user access		10 / 20 users
Storage		NAS Local PC for instant recording 128 GB Micro SD card
Web Browsing		IE, Chrome, Firefox, Safari
Management software		Smart PSS, DSS, DMSS
Smartphones		IOS, Android
Certificates
Certificates		CE (EN 60950: 2000) UL:UL60950-1 FCC: FCC Part 15 Subsection B
Interface
Video interface		No
Audio interface		No
RS485		No
Anxiety		No
Protection
Degree of protection		IP67
Vandal-proof protection		IK10
Environment
Operating conditions		-30° C ~ +60° C (-22° F ~ +140° F) / less than 95 % RH
Storage conditions		-30° C ~ +60° C (-22° F ~ +140° F) / less than 95 % RH
Electrical properties
Power supply		DC12V, PoE+ (IEEE 802.3 at) (Class 4)
Power consumption		<12 W
General information
Body		Metal
Mounting type		Wall mounted
Sizes		244.1 mm × 79 mm × 75.9 mm (9.61 " × 3.11” × 2.99”)
Net Weight		0.815 kg (1.80 lb)
Gross Weight		1.08 kg (2.38 lb)

Təsdiq

Product

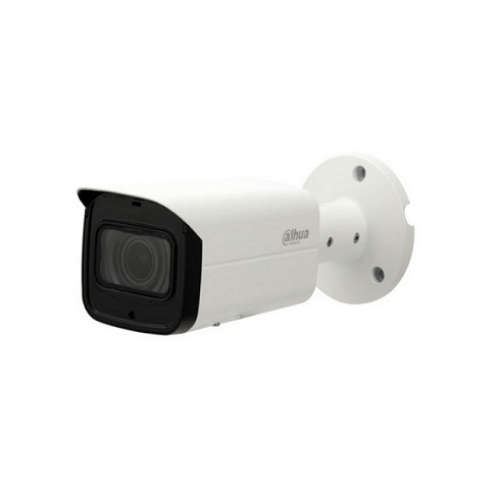

IPC-HFW2231TP-VFS-27135
