Camera
The matrix	1/2. 8 MP Progressive scan CMOS
Effective pixels	1920 x 1080
RAM / ROM	256 Mb / 32 Mb
Scanning system	Progressive
Electronic shutter speed	Auto / Manual, 1/3 ~ 1/100000 s
Mines. lighting	0.001 u / F1. 0 (Color, 1/3 s, 30IRE) 0.006 Lux / F1. 0 (Color, 1/30 s, 30IRE)
Signal-to-noise ratio"	More than 50dB
IR LEDs	No
Lens
Lens Type	Fixed
Focal length	3.6 mm
Max. aperture	F1.0
Viewing angle	87°
Optical zoom	No
Focus Management	Fixed value
Closed focal length	1.6 m (5.3 ft)
DOPE Distance	Lens	Detection	Notification	Speech recognition	Identification
	3.6 mm	53m (174ft)	21m (69ft)	11m (36ft)	5m (16ft)
Panning / Tilt / Rotate
Panning / Tilt / Rotate	Pan:0~ 360; Tilt:0~ 80; Rotation:0~ 360
Intellectual properties
Trigger events	Motion detection, Video tampering, scene change, Network outage, IP address conflict, Illegal access, Storage anomaly
IVS	Stretching / Invasion / Abandoned / Lost Objects
Advanced Smart features	Face Detection
Video
Compression	H. 265 / H. 264 / H. 264B / H. 264H / MJPEG (Additional stream)
Smart Codec	H.265+ / H.264+
Streaming capabilities	3 streams
Permission	1080P (1920 x 1080) / 1.3M (1280 x 960) / 720P (1280 × 720) / D1 (704 × 576 / 704 × 480) / VGA (640 × 480) / CIF (352 × 288 / 352 × 240)
Frame Rate	Main Stream:1080P (1 ~ 25 / 30fps)
	Additional stream:D1(1 ~ 25 / 30fps)
	Third stream:1080P (1 ~ 25 / 30fps)
Managing the bitrate	CBR / VBR
Bit rate	H.264: 24K ~ 10240Kbps H.265: 14K ~ 9984Kbps
Day / Night	Color (default) / Auto (Electronic) / B / W
BLC Mode	BLC / HLC / WDR(120dB)
White Balance	Auto / Natural / Street Lamp / Outdoor activities / Manually
Gain control	Auto / Manual
Noise reduction	3D DNR
Motion Detection	Off / On (4 zones, rectangle)
Area of interest	Off / On (4 zones)
Electronic Image Stabilization (EIS)	No
Smart IR	No
Prevent fogging	No
Digital zoom	16x
Rotate the frame	0° / 90° / 180° / 270°
Display	Off / On
Privacy Mask	Off / On (4 Zones, Rectangle)
Audio
Compression	G.711a / G.711Mu / AAC / G.726
Network
Ethernet	RJ-45 (10 / 100Base-T)
Protocol	HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;PPPOE;IEEE802.1X;SMTP;SNMP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Многоадресная рассылка;ICMP;IGMP;TLS;SSH;NFS
Compatibility	ONVIF Profile S&G, API
Streaming method	Unicast / Multicast distribution
Max. user access	10 / 20 users
Storage	NAS Local PC for instant recording Mirco SD card 128 GB
Web Browsing	IE, Chrome, Firefox, Safari
Management software	Smart PSS, DSS, DMSS
Smartphones	IOS, Android
Interface
Video interface	No
Audio interface	1 input / 1 output
RS485	No
Anxiety	1 channel input: 5 mA 5 VDC 1 channel output: 300 mA 12 VDC
Protection
Degree of protection	IP67
Vandal-proof protection	IK10
Certificates
Certificates	CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15, Subsection B
Environment
Operating conditions	-30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / Less than 95% RH
Storage conditions	-30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / Less than 95% RH
Electrical properties
Power supply	DC12V, PoE(802.3af)(Class 0)
Power consumption	<3,7 W
General information
Body	Metal
Sizes	Φ122 mm × 88.9 mm (4.8” × 3.5”)
Net Weight	0.44 kg (0.97 lb)
Gross Weight	0.58 kg (1.29 lb)

Təsdiq

Product

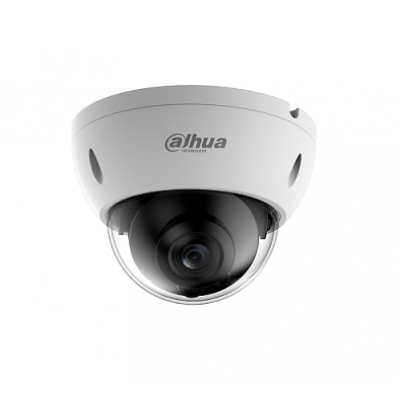

IPC-HDBW4239RP-ASE-0360B
